COVA Biolabware

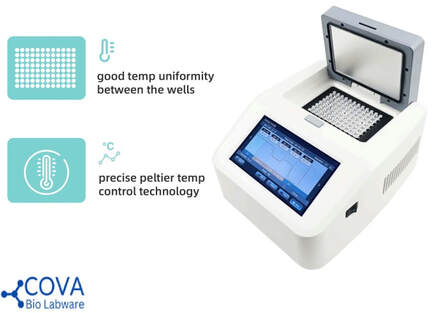

Gradient PCR Machine (Thermal Cycler)
Brand: COVA Biolabware
Catalog: CV-TC96G

The thermal cycler is basic instrument in molecular laboratories and is mainly used for gene ampliûcation in scientiûc research and clinical area, qualitative PCR gene ampliûcation, gene chip or other gene analysis applications. The gradient thermal cycler has gradient function, which can quickly increase and decrease the temperature. It can achieve temperature uniformity in a single process and can quickly and stably complete polymerase chain reaction (PCR) experiments.
​Features:
  • Portable and compact design
  • Elastic structure hot lid design, adaptable to 96-well microplate (except full-skirted) or 0.1/0.2ml PCR tube
  • Using high-quality peltier, ensure excellent temperature uniformityThe heating and cooling rate can reach to 5.5℃/s, saving experimental time
  • Humanized standard program ûle template, which can quickly edit experimental files
  • Automatic fault detection and alarm function
Specification:
Temp mode
Sample capacity
Reaction volume
Block temp control range
Hot lid temp control range
Temp. display accuracy
Temp. control accuracy
Temp. uniformity
Max. heating/cooling rate
Gradient setting range
Gradient spread
Gradient temp. uniformity
Gradient temp. accuracy
Heating and cooling system
Display
Memory capacity
Max. number of cycle
Power outage protection
Dimension
Weight
Voltage/Frequency
Gradient
96×0.1/0.2mL PCR tube/96-wells microplate
1-100 ul
4~105°C
30~110°C
±0.1°C
±0.3°C
±0.3°C at 55℃
5°C/s
30~105°C
1~42°C
±0.3℃ at 55℃
±0.3℃ at 55℃
Petier temperature control
7-inch color touch screen
700 ûles
100
Yes
L270×W240×H150mm
4.8kg
100~240V;50/60Hz

​Gradient PCR Machine, PCRTC-G
DESCRIPTION
  • Gradient type
  • Sample Capacity: 96 well plate, 96X0.2mL PCR tube
  • Max. Heating/Cooling rate：5℃/Sec
  • Temperature uniformity≤±0.3℃
  •  High performance DSP and temperature control
  • Large user program storage
  • Reliable  heating/cooling  elements  and  precise temperature control
  • Unique  design  of  block  ensures  the temperature uniformity and repeatable results
  • 7 inch Large color touch panel screen for easy programming with user friendly software
  • Fast heating and cooling rate
​Specifications
Sample Capacity
Heating Temperature Range
Lid Temperature Range
Temperature Display Accuracy
Temperature Control Accuracy [at 55℃]
Temperature uniformity[at 55℃]
Max. Heating/Cooling Rate
Gradient Temperature Setting Range
Gradient Range
Adapter block material
Display
Input
User defined file system
Power off protection
Power Supply
Dimension [D×W×H]
Gross/Net
​:PCRTC-G
:96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate
:4-105℃
:30-110℃
:±0.1℃
:±0.3℃
:<0.3℃
:5℃/Sec
:30-99℃
:1-42℃
:Aluminum
:7” LCD 800×480
:Touch panel
:Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder
:Yes
:100-120V/200-240V,50/60Hz
:590x420x430 mm
:13kg / 12kg
